Description

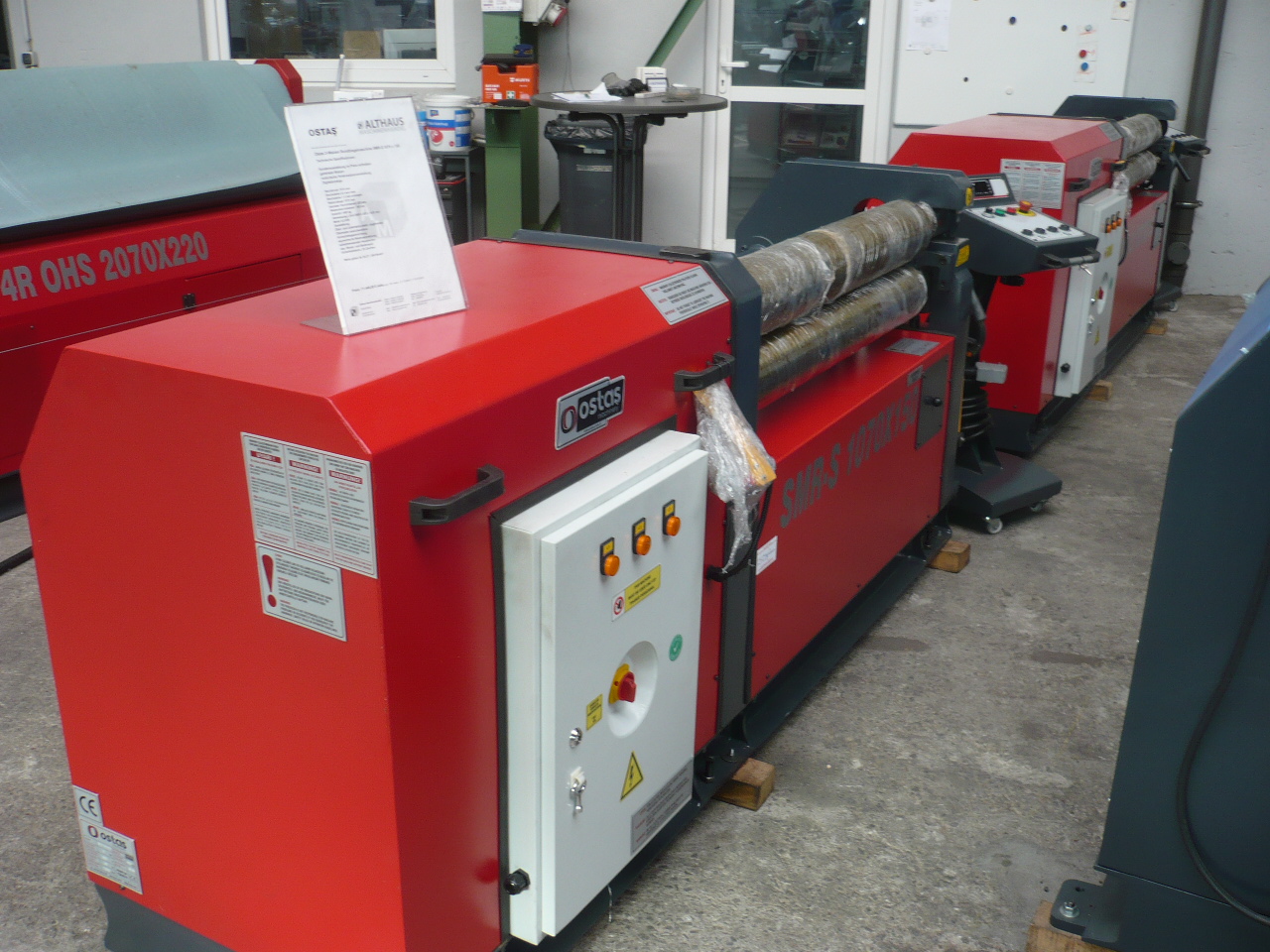

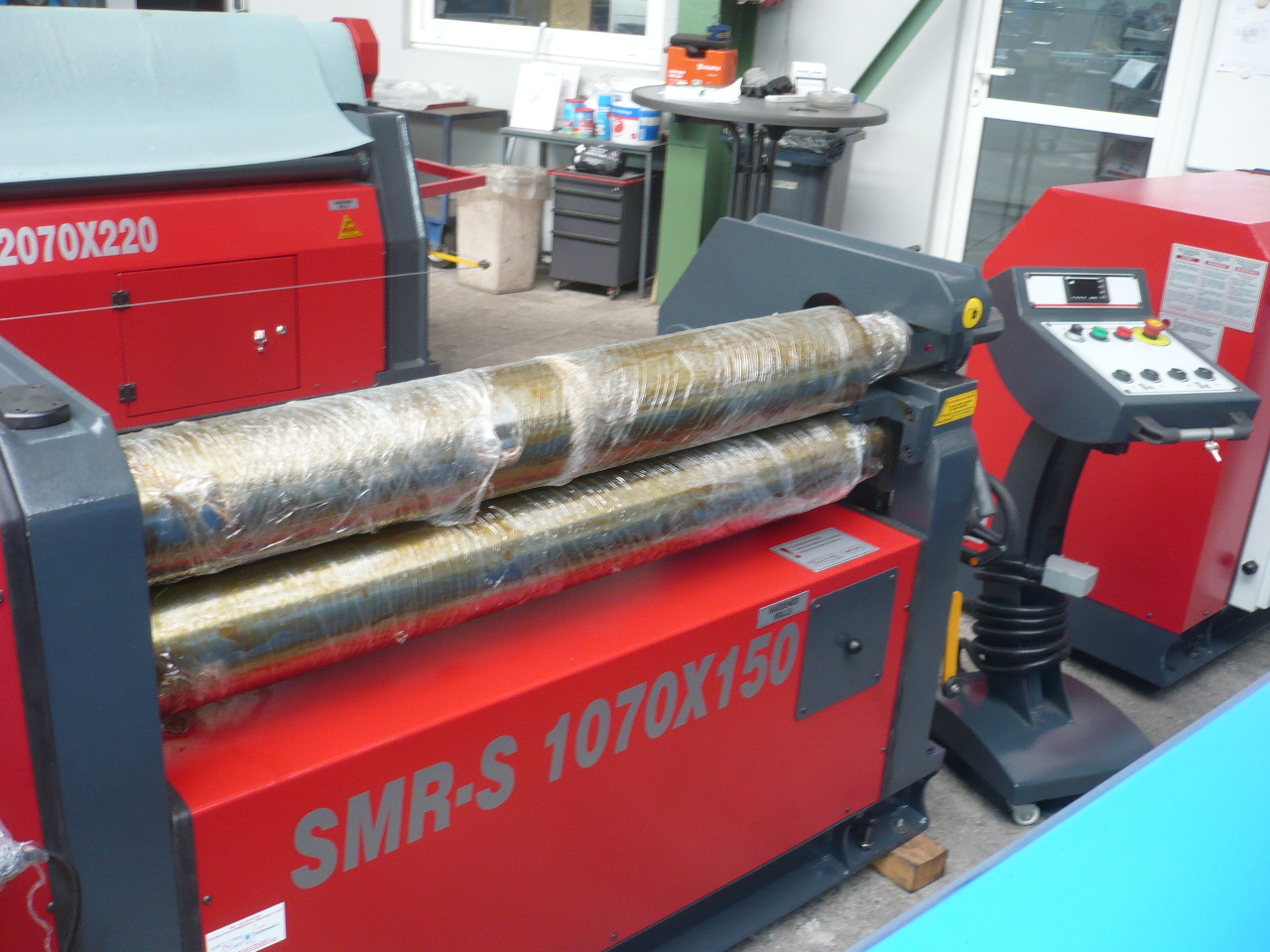

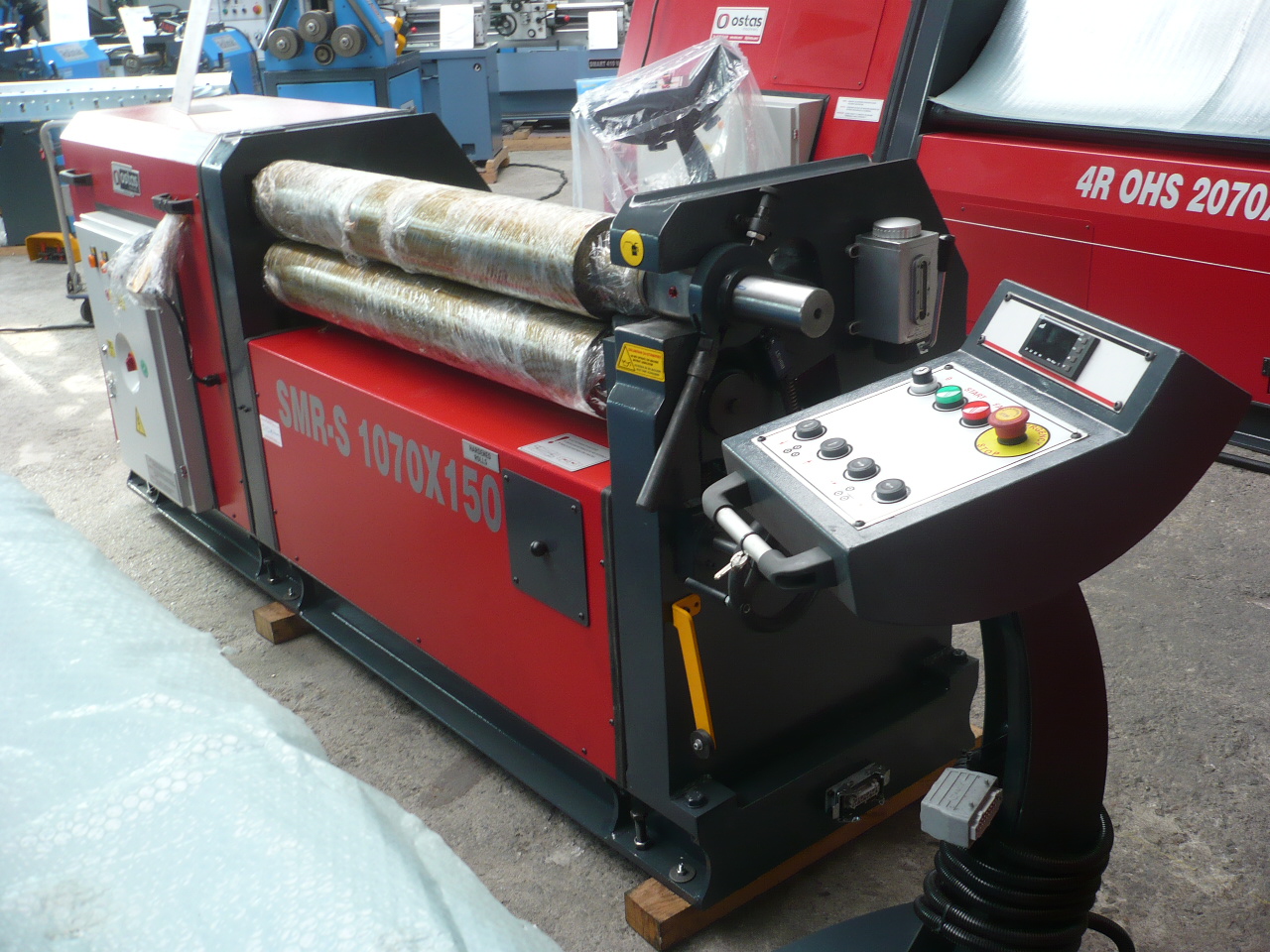

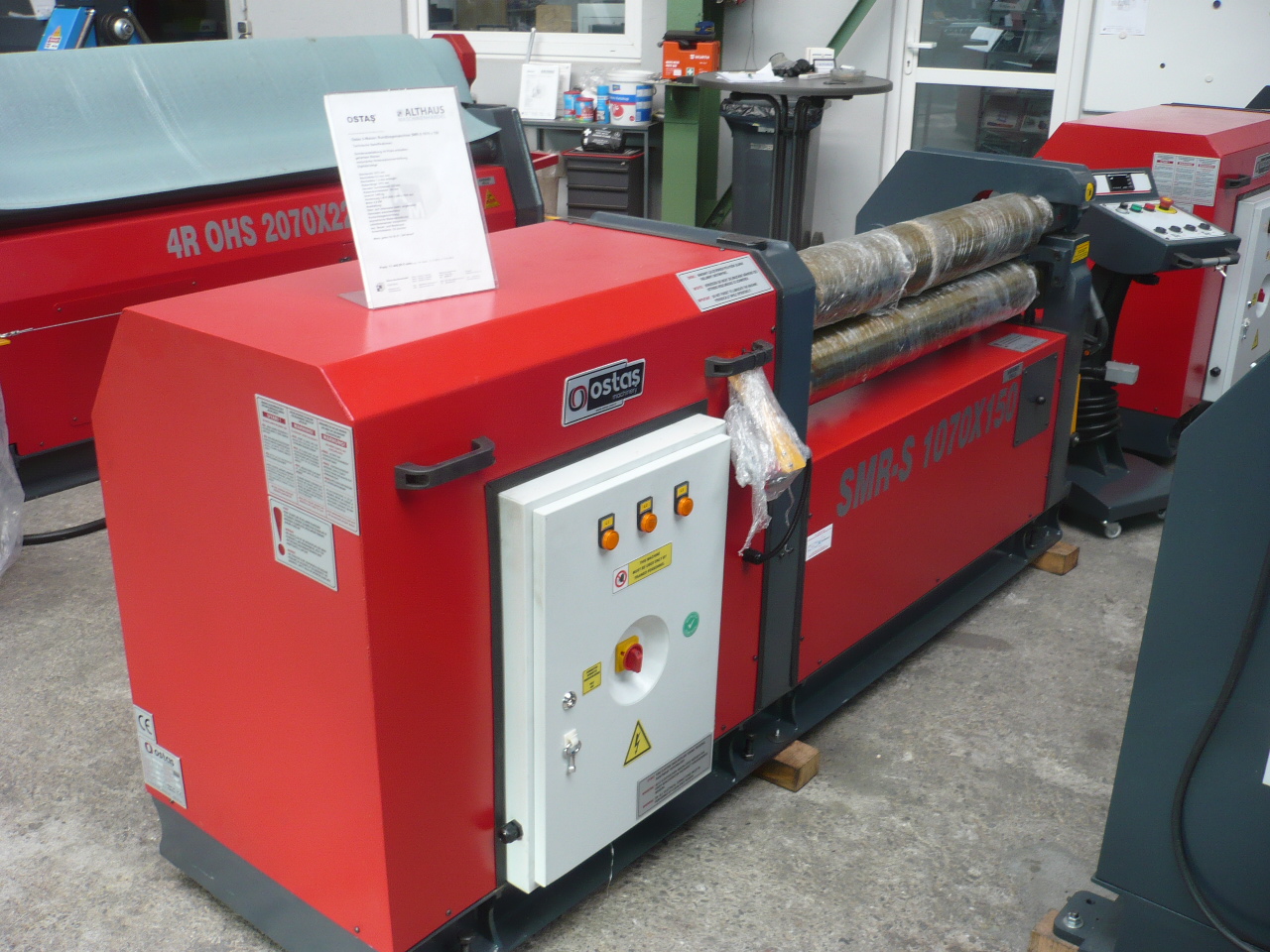

Ostas 3-roller round bending machine SMR-S 1070 x 150

Technical specifications:

Special equipment included in the price:

hardened rollers
Motorized rear roller adjustment
Digital display

Sheet width 1070 mm
Sheet thickness 8.0 mm max.
Bending sheet thickness 7.0 mm
Roller length 1070 mm
smallest diameter 225 mm
Roller diameter 150 mm
Weight 1400 kg
Dimensions LWH 2600 x 630 x 1020 mm

Engine 4.5 KW
Furnishing:
Upper and lower rollers electrically driven
Upper roller can be swivelled out
Conical bending device
asymmetrical roller arrangement
self-braking main motor

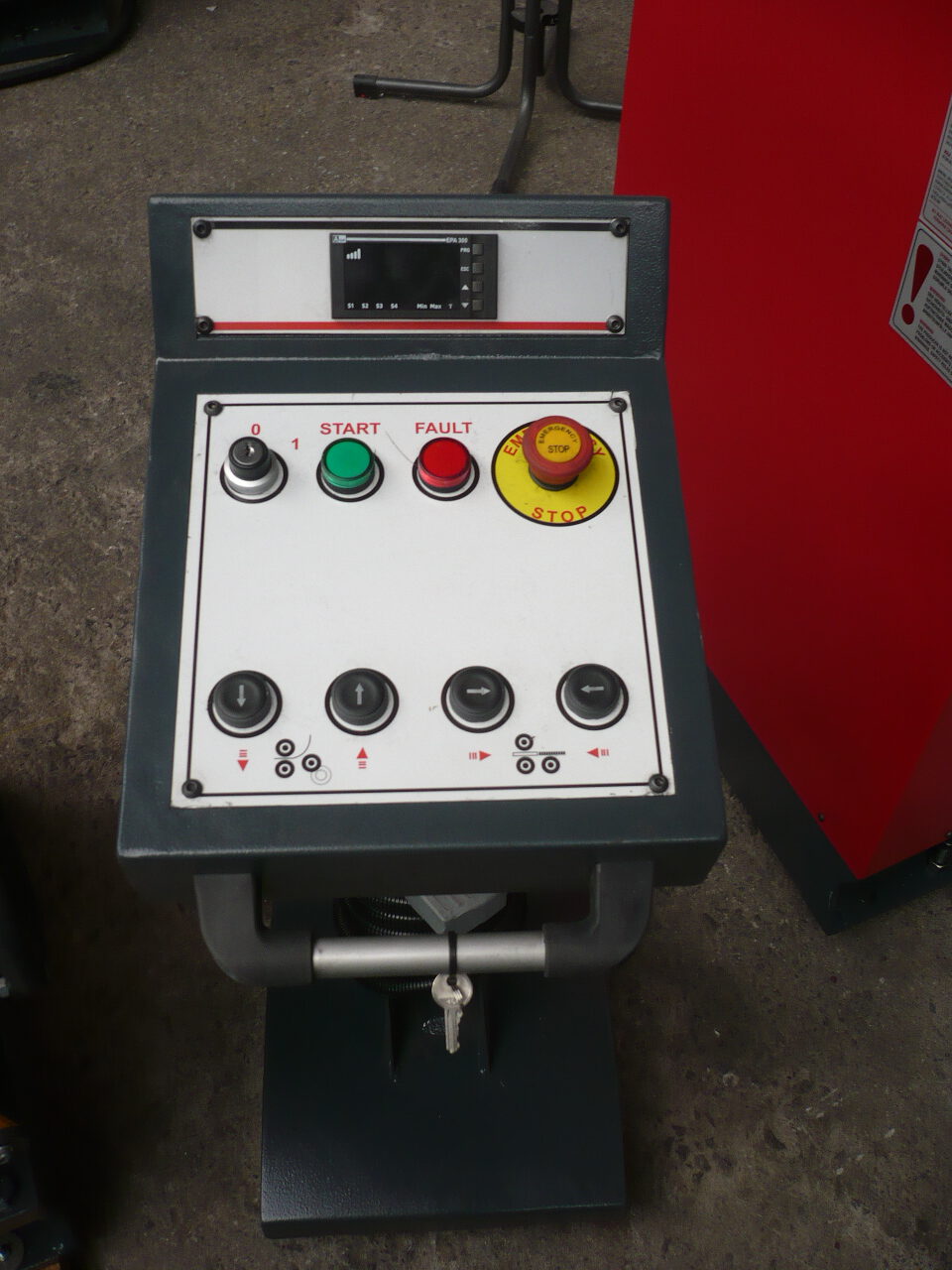

separate control and operating panel
Safety line, CE mark
Values apply to St-37 / 240 N/mm²
